TFT - H014A3DQIST4N10: Your Ideal LCD Module
Are you seeking a high - quality LCD module for your projects? Look no further than the TFT - H014A3DQIST4N10.

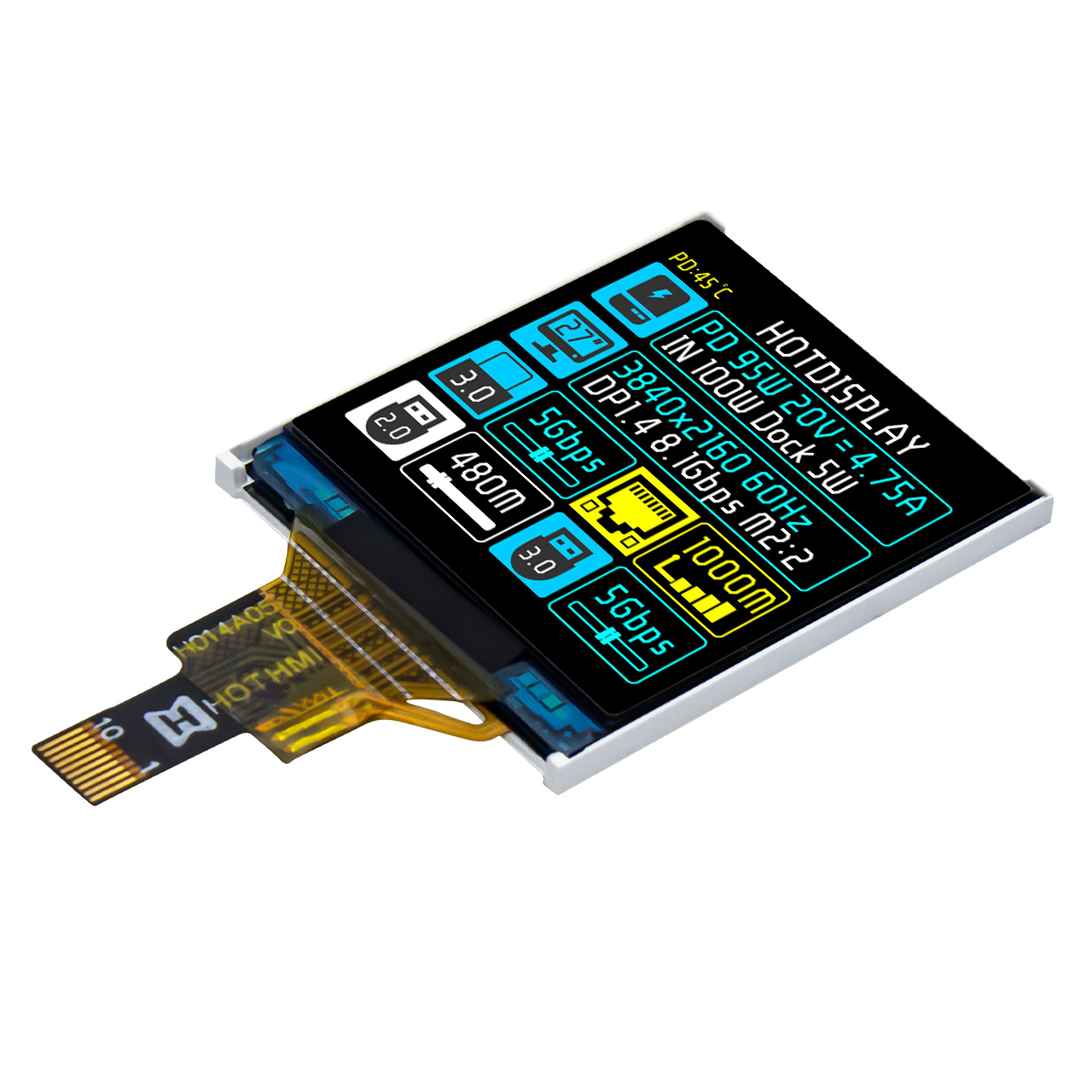

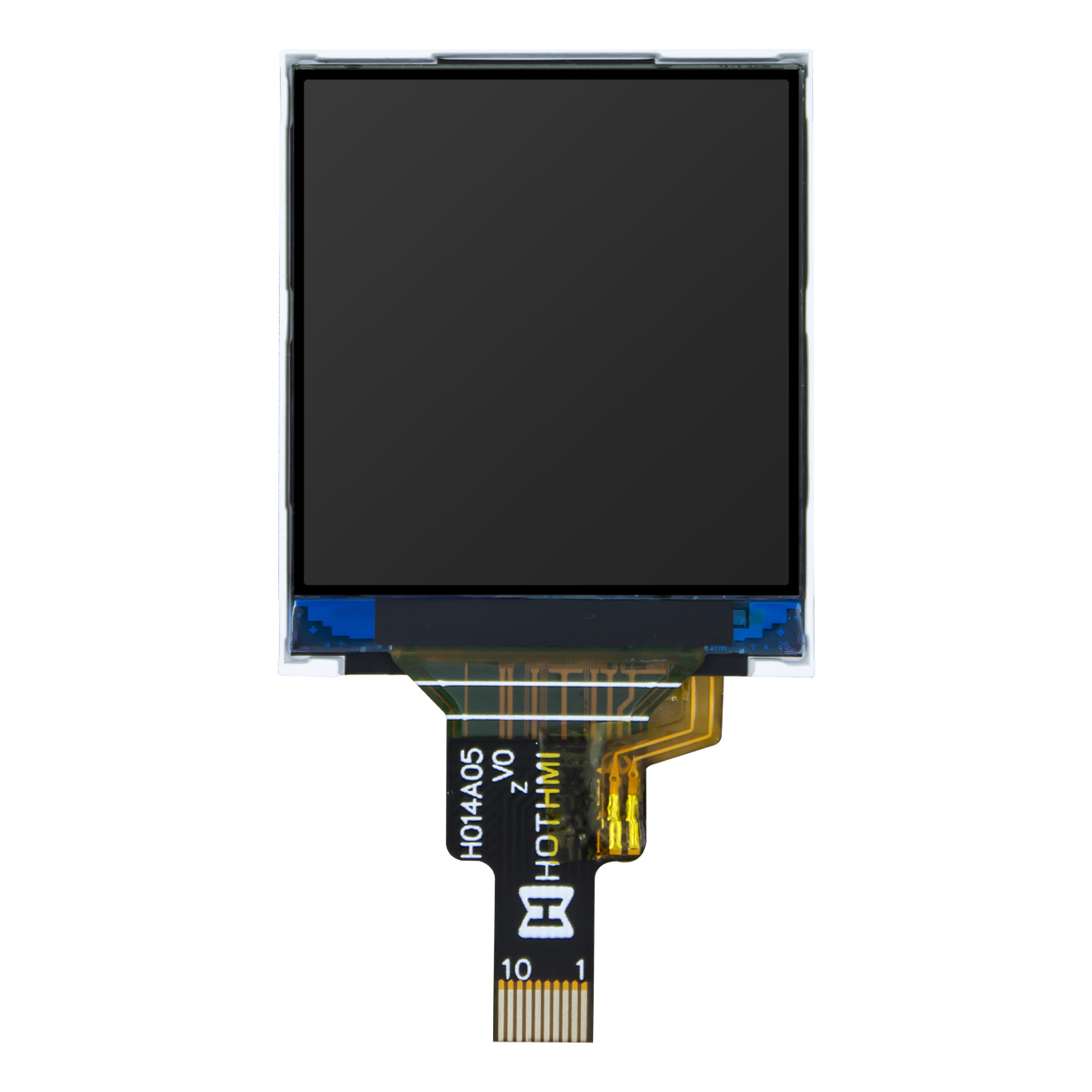

1.4 - inch IPS Square LCD with High - Resolution
This 1.4 - inch TFT LCD features a 240x240 dot matrix, delivering sharp and clear visuals. The IPS technology ensures a wide viewing angle, so your content can be easily seen from various positions.
Optional Touch Functionality
Choose between capacitive touch or resistive touch options, providing flexibility for different application needs. Whether it's for a user - friendly interface in a smart device or an instrument control panel, the touch feature enhances interactivity.
Multiple Interface Compatibility
Equipped with an SPI interface, it also supports 8080 8 - bit, 9 - bit, 16 - bit, 18 - bit parallel interfaces and 3 - wire, 4 - wire serial interfaces. This wide range of interface options makes it adaptable to different microcontroller setups.
True Color Display
With 65K/262K true color capabilities, it can vividly present your graphics and images. Ideal for applications where visual appeal matters, such as in some high - end instruments or smart devices.
Low Voltage Operation
Operating at 2.8V, it is energy - efficient, suitable for battery - powered projects. And it supports vertical display, adding more versatility to your design.
Compatibility with Popular Platforms
Fully compatible with Arduino, as well as 8051 PIC, AVR, ARM, Raspberry Pi and other single - chip microcomputer development platforms. It's a breeze to integrate into your existing development ecosystem.
Environmentally Friendly
All materials meet environmental protection requirements and RoHS standards, ensuring a green and sustainable product.
Widely used in various instruments and smart devices, the TFT - H014A3DQIST4N10 is the perfect choice for your next project.
| Customized Ribbon Cables/Flexible Printed Circuits (FPC): Tailor your cables to perfection by adjusting their length, position, and pin arrangements, or adding other connectors. Obtain a precisely designed cable solution to streamline and enhance the safety of your connections |
| Touchscreen Add-On Components: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design. |
| Interface Customization: Choose from various interface options or consult with our experts to select the options that best suit your project. We can integrate HI,USB, SPI, VGA, and other interfaces into your display to achieve your design goals. |
| Cover Glass: Equip your display with custom-cut cover glass to improve durability. Choose from various thicknesses of cover glass and undergo optical bonding to prevent moisture and debris. |
| project | Parameter Description | unit |
| TFT series | Standard TFT | |
| Diagonal size | 1.4” | Inch |
| Resolution | 240 × RGB × 240 (TFT) | dots |
| Dimensions | 27.56x30.7x1.82 | mm |
| Effective area (AA) | 25.2x25.2 | mm |
| LCD type | Square TFT | |
| Display perspective | 80/80/80/80 (IPS) | |
| Aspect ratio | 1:1 | |
| Backlight type | LED, white | |
| TFT driver IC | ST7789 | |
| Touch panel | None | |
| Surface | Glossy | |
| Brightness | 400 | cd/㎡ |
| Operating temperature | -20~+70 | °C |
| Storage temperature | -30~+80 | °C |
