4 Inch TFT LCD Display | 320x320 Resolution SPI interface

Name: 4 Inch TFT LCD Display 320x320 Resolution SPI interface
Brand: HOTHMI
Price: 1 USD

4 Inch TFT LCD Display | 320x320 Resolution SPI interface Manufactures

Brand Name : HOTHMI

Model Number : TFT-H040A12DHIIL4N40

Place of Origin : dongguan,China

MOQ : 2

Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram

Supply Ability : 99999

Delivery Time : 25 days

Product Type : TFT Square

Display Content : 320x320

Dimensions (mm) : 74.66x76.54x2.02

Viewport Window Size : 4.0 inch

Effective Size (mm) : 71.14x69.82

Product Application : Instrumentation

Contact Now

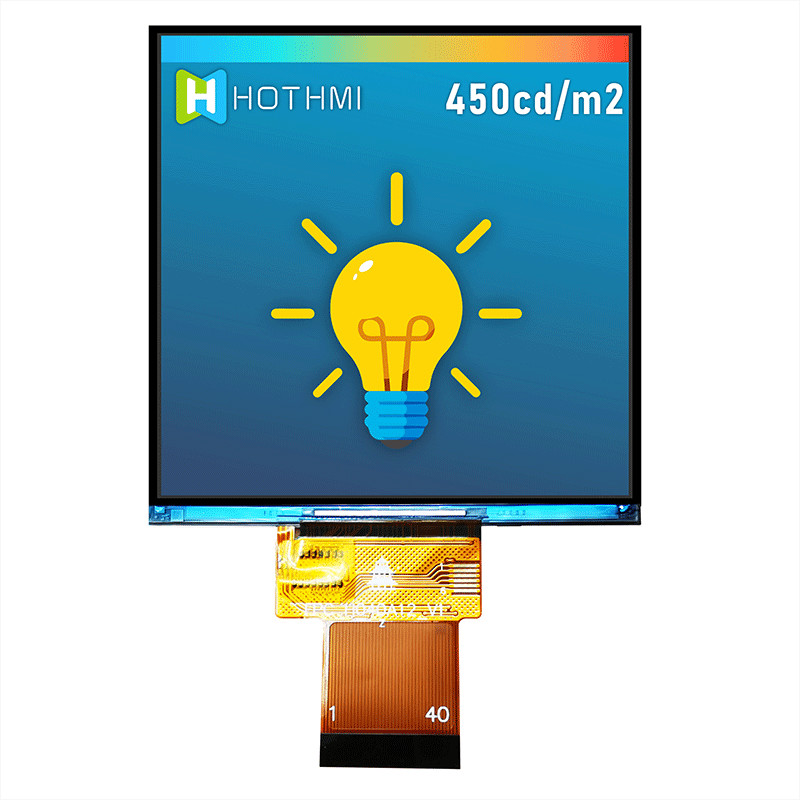

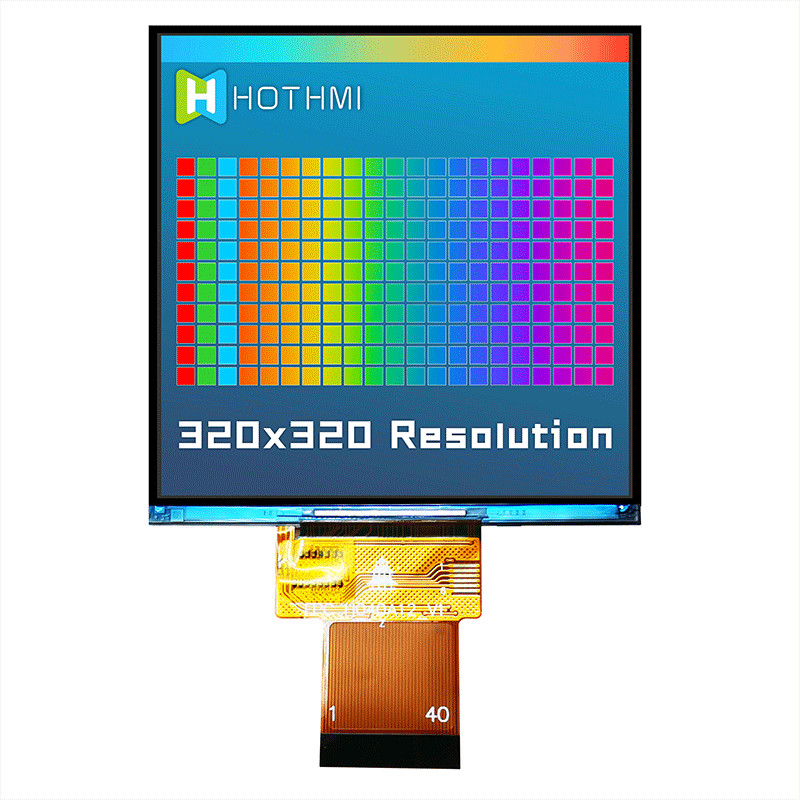

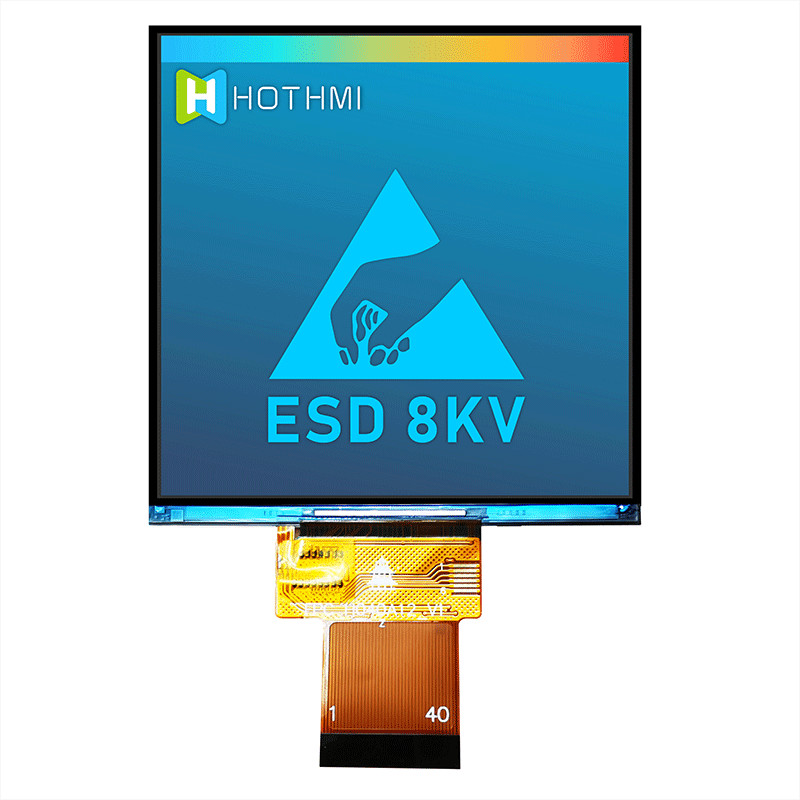

4 Inch 320x320 Dots Wide Temperature IPS TFT Display With IC/TFT-H040A12DHIIL4N40

Product parameters

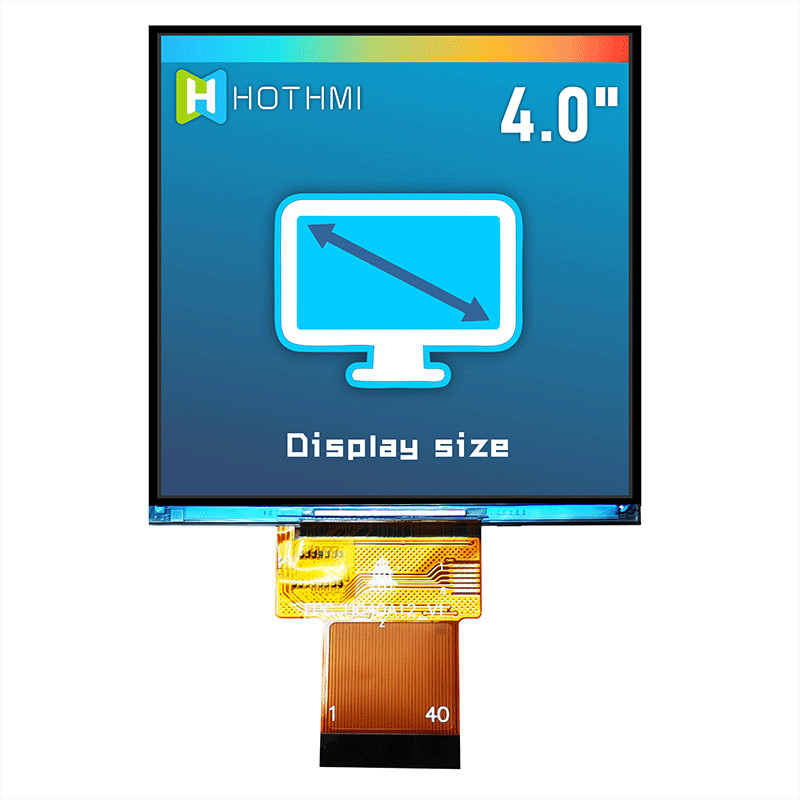

Display Size - 4.0 inch

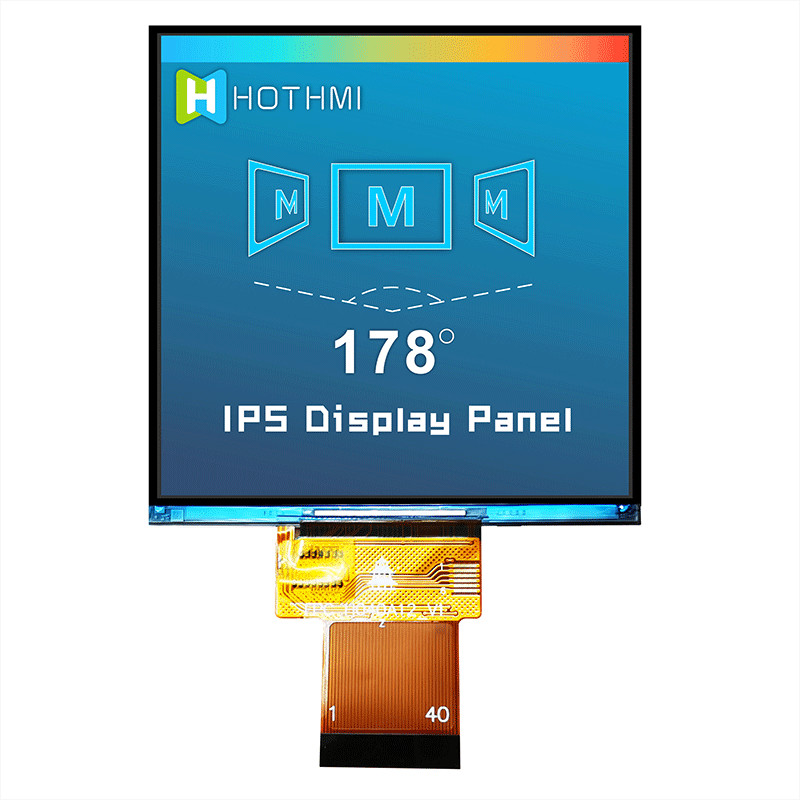

Perspective - Full Perspective
Backlight brightness - 450cd/m2
Connection method PIN number - FPC-40PIN

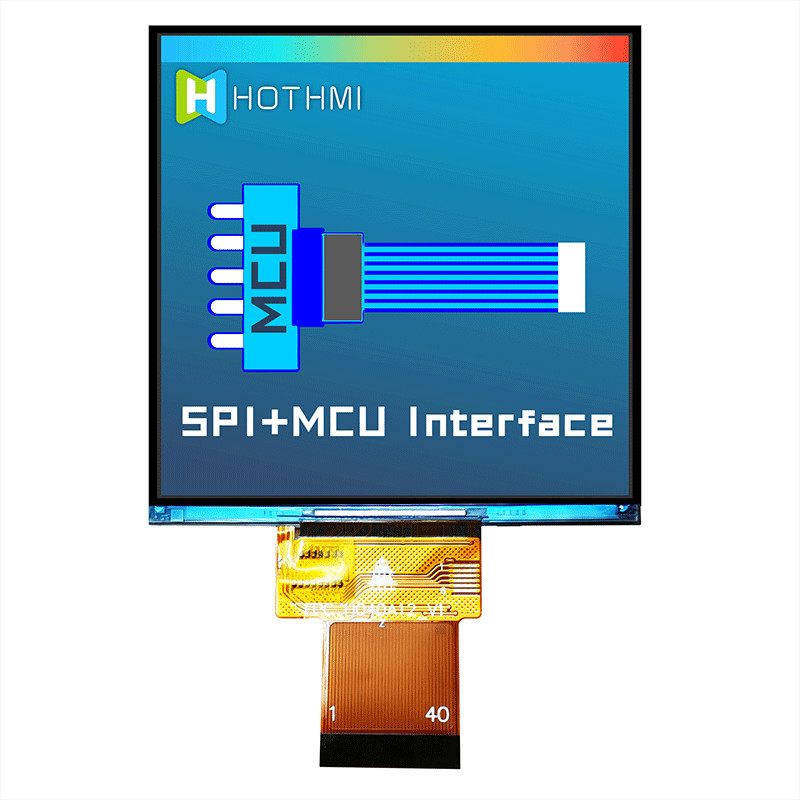

Interface - SPI+MCU
Special Instructions - Adapt to 86 Box Solution

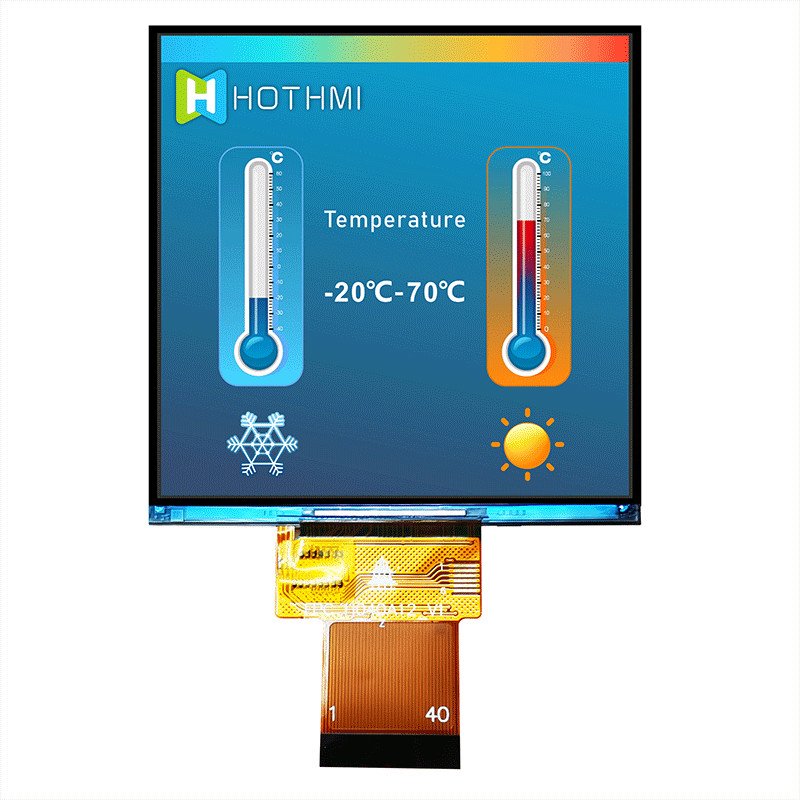

Working temperature - (-20~70℃)
Supply Voltage - 2.8v

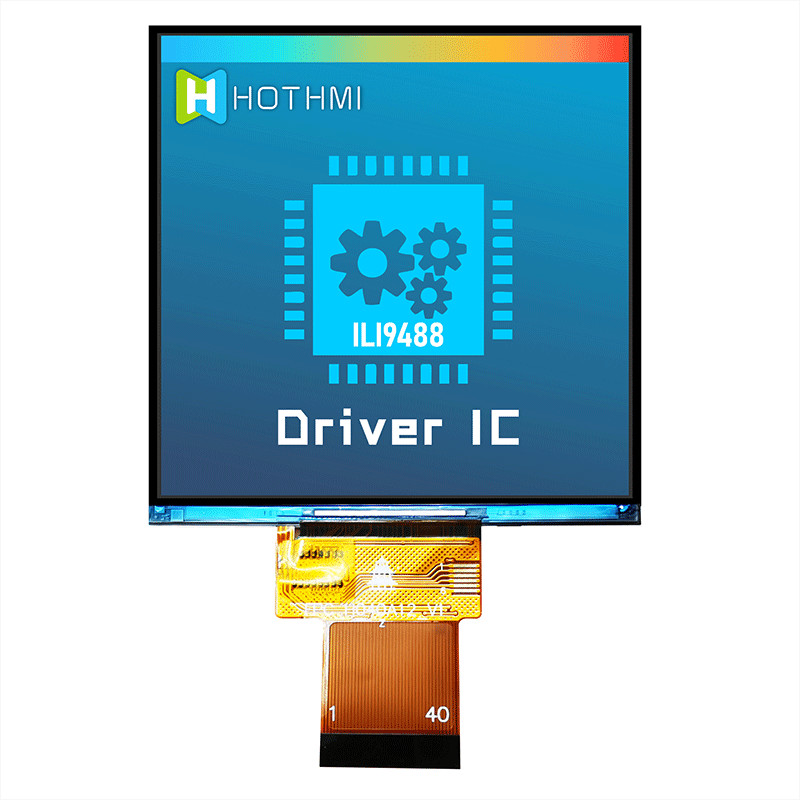

Driver IC Model - ILI9488

General Feature:

Item	Standard Value	Unit
Display Size	4.0”	--
Number of Pixels	320(H)x3(RGB)*320(V)	--
Active Area	71.14(H) * 69.82(V)	mm
Outline Dimension	74.66(H) * 76.54(V) * 2.02(D) <TFT>	mm
Viewing Direction	Full O’Clock	-
Interface	SPI 3L/SPI 4L/MCU 8bit/MCU 16bit	-
Driver IC	ILI9488	-
Driver Condition	VCI=2.8V,IOVCC=1.8V	V
Backlight	LED White LED	-
Touch Panel	Whitout Touch Panel	-
CTP Driver IC	- - -
CTP Driver Condition	VDD=3.3V
Operation Temperature	-20~70	℃
Storage Temperature	-30~80	℃

TFT Pin Description

Pin NO.	Symbol	Description
1	GND	Ground
2	CTP_INT	CTP function pin, do not need to be left floating
3	CTP_SDA
4	CTP_SCL
5	CTP_RES
6	SDO	Serial data output
7	VCI	Analog Power(2.6 ~ 3.3 V,2.8V Type)
8	IOVCC	Logic Power(1.75 ~ 3.3 V,1.8V Type)
9	SDI	Serial data input/output bi-direction pin
10	CS	Chip select input signal
11	RS	Data/Command Selection (L: Command/H:Parameter)
12	WR	MCU: WRX pin, serves as a write signal SPI: SCL pin as Serial Clock when operates in the serial interface
13	RD	MCU: Serve as a read signal
14-29	DB[0-15]	Data bus.Connect unused to GND.
30	RESX	Global reset pin. Active low to enter reset state.
31	IM0	Select the interface mode
32	IM1	Select the interface mode
33	GND	Ground
34-37	LED_K	LED Cathode
38	LED_A	LED Anode
39	GND	Ground
40	IM2	Select the interface mode

Search keyword: tft 4", 4 tft lcd, 4" tft lcd, 4 inch tft lcd, tft lcd 4, 4 tft display, 4" tft display, 4 inch tft display, tft display 4"
