Vertical 3.5 Inch TFT LCD Module , Multifunctional TFT Capacitive Screen

Brand Name : HOTHMI

Model Number : TFT-H035A3HVIST4R50

Place of Origin : dongguan,China

MOQ : 2

Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram

Supply Ability : 99999

Delivery Time : 25 days

Product Type : TFT Vertical Screen

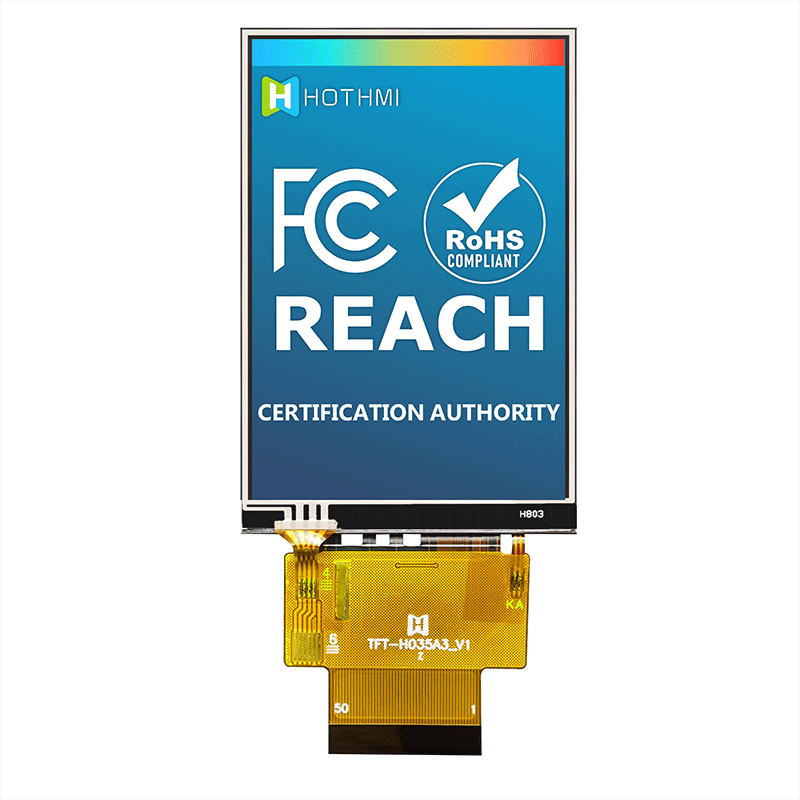

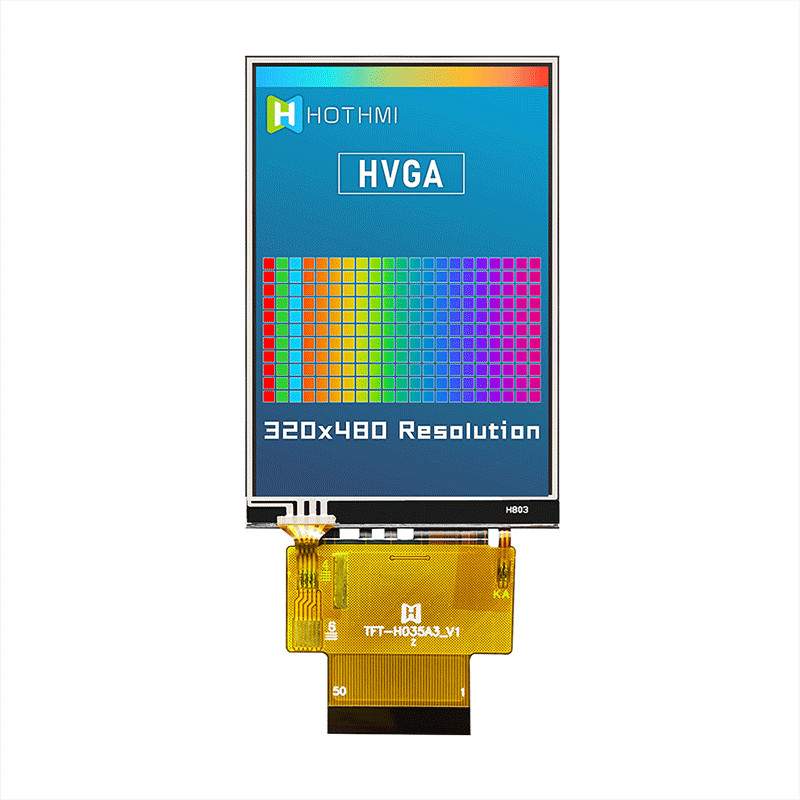

Display Content : 320x480

Viewport Window Size : 3.5"

Effective Size (mm) : 48.96x73.44

Product Application : Industrial Instrumentation, Medical

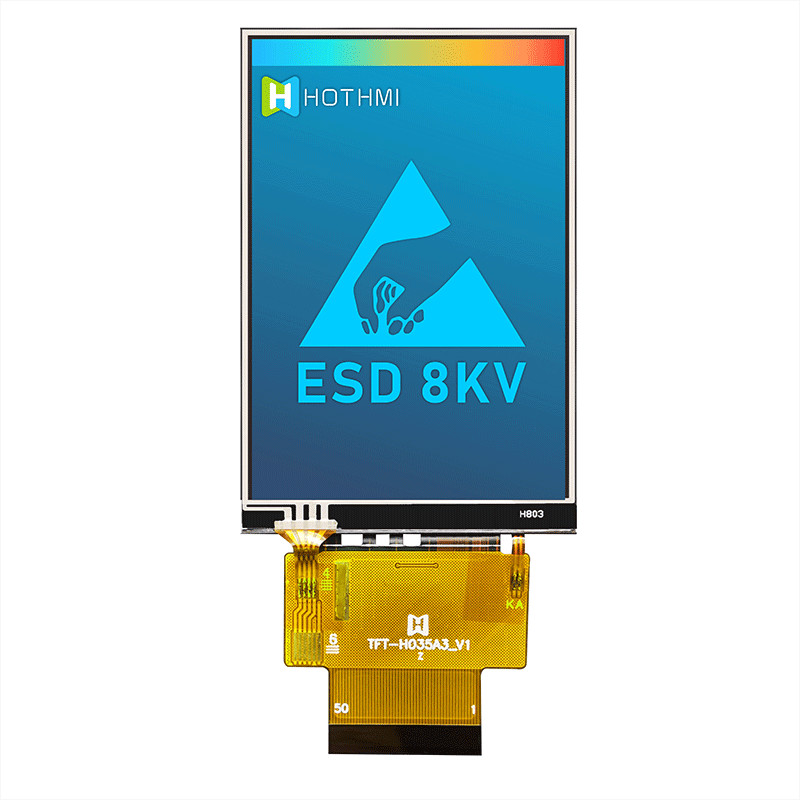

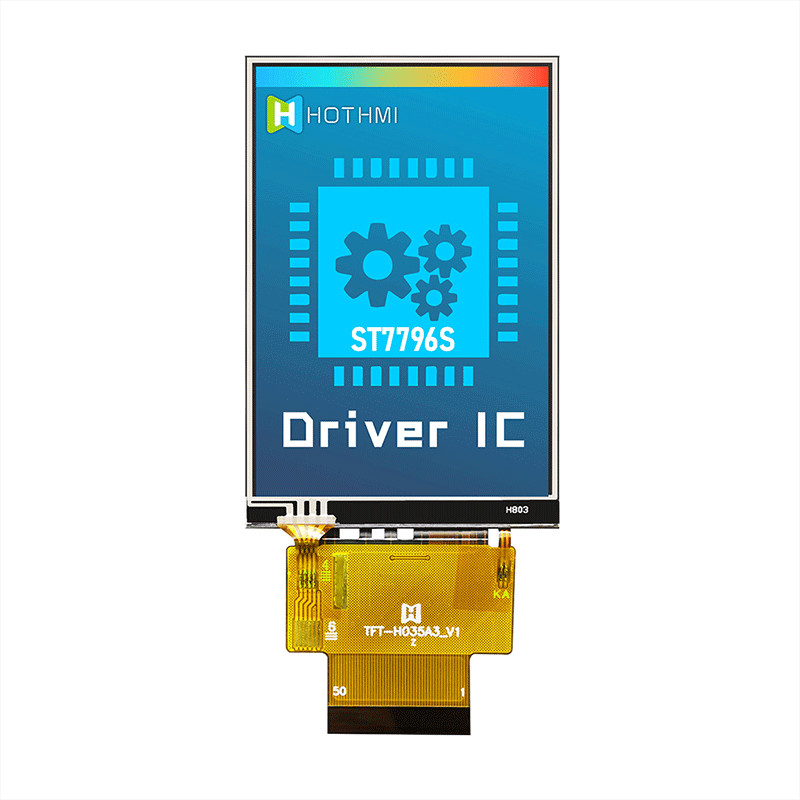

Driver chip model : ST7796S

Contact Now

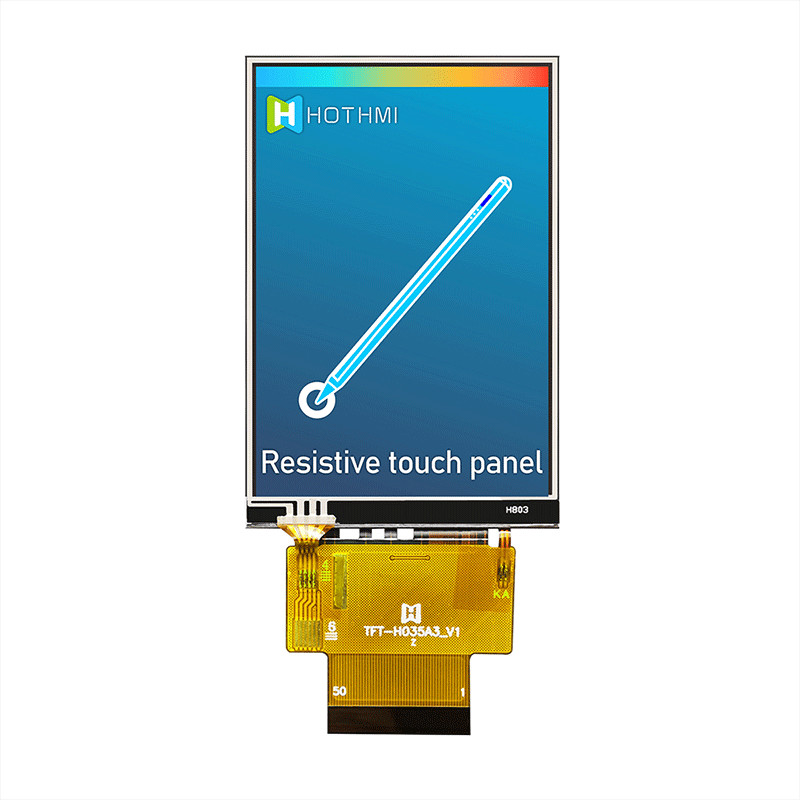

3.5 inch TFT LCD Module with Resistive Touch Panel/320x480 Pixels/TFT-H035A3HVIST4R50

Product parameters


Display Size - 3.5"
Perspective - Full Perspective
Backlight brightness - 500cd/m2
Connection method PIN number - FPC-50PIN
Interface - MCU/SPI/RGB/MIPI

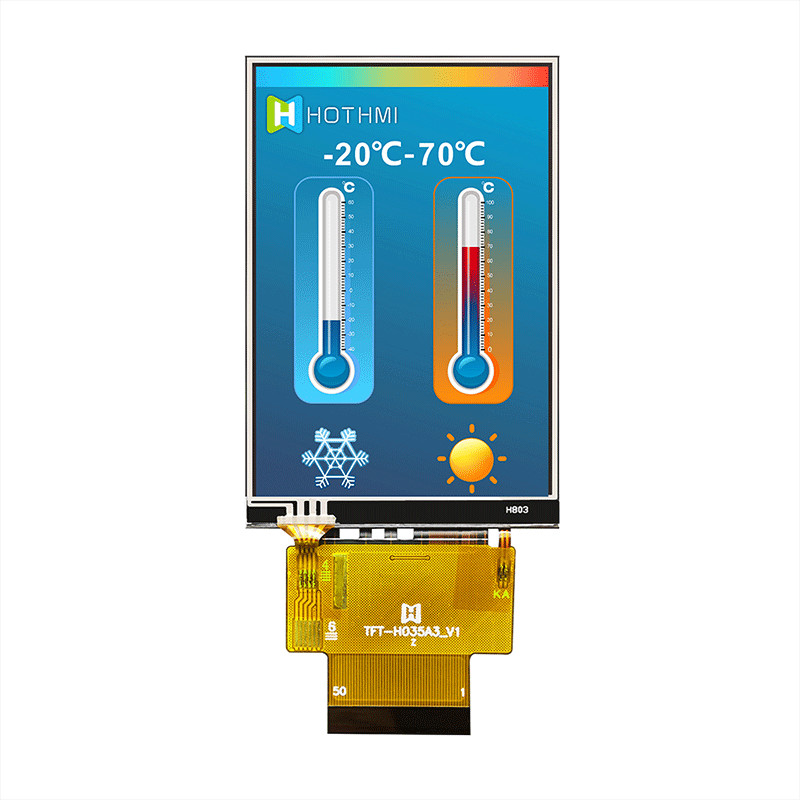

Working temperature - (-20~70℃)
Supply Voltage - 3.3v

General Feature:

Item

Standard Value

Unit

Display Size

 3.5” -

Number of Pixels

 320(H)x3(RGB)*480(V) -

Active Area

 48.96(H) * 73.44(V) mm

Outline Dimension

 54.76H) * 83.58(V) * 3.70(D) <TFT+RTP> mm

Viewing Direction

FULL O'clock

 -

TFT Interface

 Compatible interface, determined by IM[0-2] -

TFT Driver IC

 ST7796S -

TFT Driver Condition

 VCI=2.8V,IOVCC=1.8V(Typ) V

Backlight

 White LED/6 PCS/Series -

Touch Panel

Whit RTP

-

RTP Driver IC

 - - - -

RTP Driver Condition

 VDD=3.3V(Typ) V

Operation Temperature

 -20 ～ 70 ℃

Storage Temperature

 -30 ～ 80 ℃

Pin Description

Pin NO.

Symbol

Description
1 LEDA LED Anode
2 LEDK LED Cathode
1 LED_A LED Anode
2 LED_K LED Cathode
3 GND Ground
4 MIPI_DN

♦ Low voltage differential data signal

♦ Leave the pin to open when not in use.
5 MIPI_DP
6 GND Ground
7 MIPI_CN

♦ Low voltage differential clock signal

♦ Leave the pin to open when not in use.
8 MIPI_CP
9 GND Ground
10～12 IM[0～2] The MCU interface mode select
13 RESET TFT Reset Pin.Signal is active low.
14 VSD

♦ Vertical synchronizing input signal for RGB interface.

♦ If not used, please fix this pin at GND.
15 HSD

♦ Horizontal synchronizing input signal for RGB interface.

♦ If not used, please fix this pin at GND.
16 PCLK

♦ Dot clock signal for RGB interface.

♦ If not used, please fix this pin at GND.
17 DEN

♦ Data enable signal for RGB interface.

♦ If not used, please fix this pin at GND.
18～35 DB[17～0] Data Bus.If not used, please fix this pin at GND.
36 SPI_SDO

♦ SPI interface output pin.If not used, let this pin open.

♦ The data is outputted on the falling edge.

37

SPI_SDI

♦ SPI interface input/output pin.

♦ The data is latched on the rising edge.

♦ If not used, please fix this pin at GND.
38 RDX

♦ Read enable in 8080 MCU parallel IF. Low-active.

♦If not used, please fix this pin at GND.

39

 WRX SPI_SCL

♦ Write enable in MCU parallel interface

♦ In SPI mode, this pin is used as SCL.

♦ If not used, please fix this pin at GND.
40 DCX

♦ Display data/command selection pin in parallel IF.

♦ If not used, please fix this pin at GND.
41 CSX/SPI_CS

♦ Chip select input pin (“Low” enable).

♦ If not used, please fix this pin at GND.

42

TE

♦ Tearing effect signal is used to synchronize MCU to frame memory writing.

♦ If not used, please let this pin open.
43 VCI Digital Power
44 GND Ground
45 NC/CTP_VDD

♦ Power supply input for CTP.

♦ If not used, please let this

pin

open.

46

 RTP-XR CTP-SCL

♦ CTP Serial clock signal.

♦ RTP XR control signal

♦ If not used, please let this pin open.

47

 RTP-YD CTP-SDA

♦ CTP Serial data input signal.

♦ RTP YD control signal

♦ If not used, please let this pin open.

48

 RTP-XL CTP-INT

♦ CTP_External interrupt to the host.

♦ RTP XL control signal

♦ If not used, please let this pin open.

49

 RTP-YU CTP-RES

♦ CTP Reset Pin.

♦ RTP YU control signal

♦ If not used, please let this

pin

open.
50 GND

Ground

Product Description

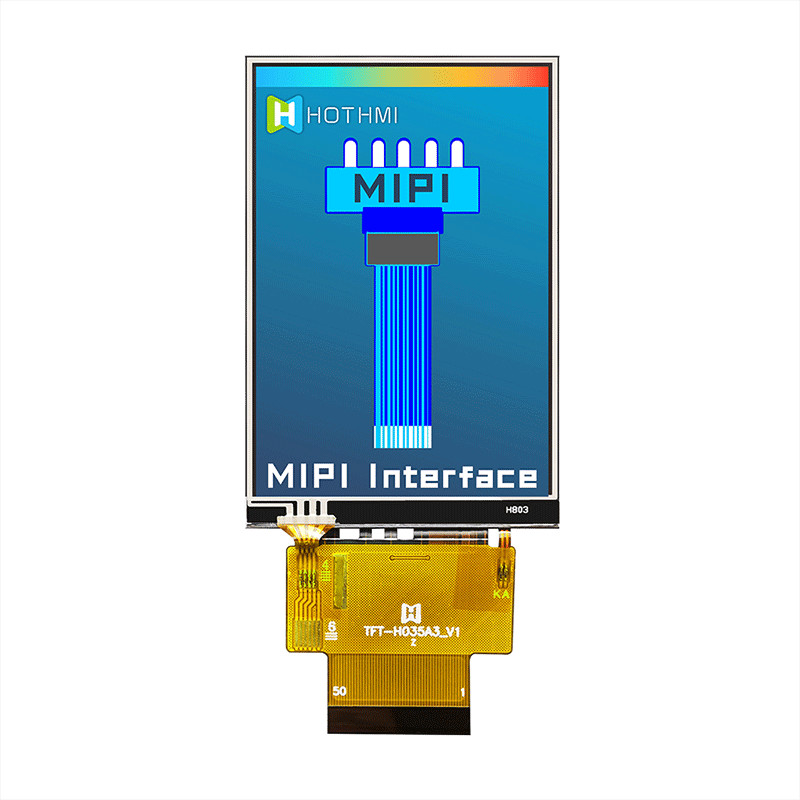

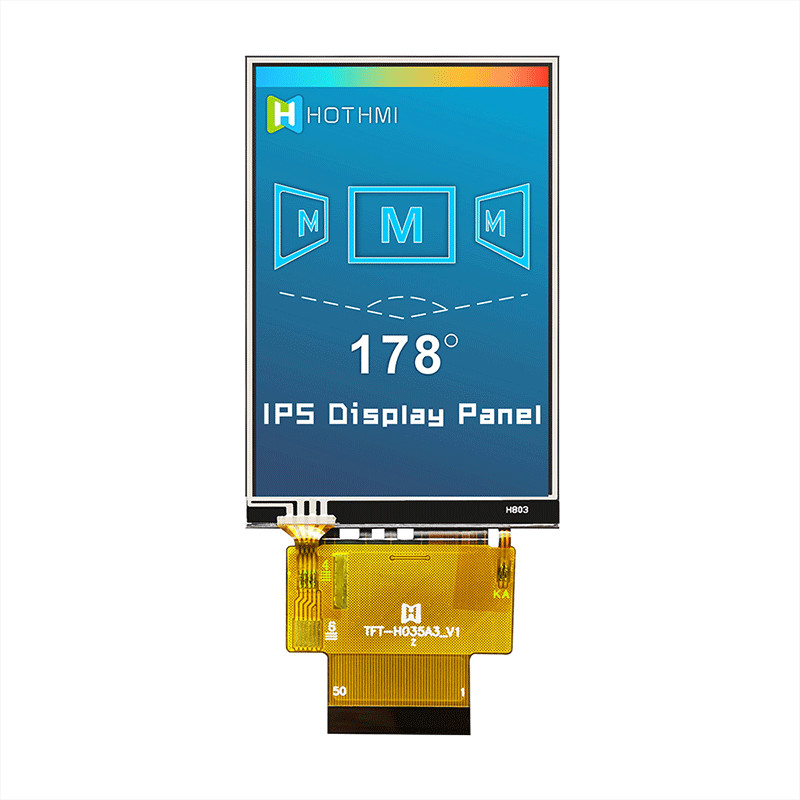

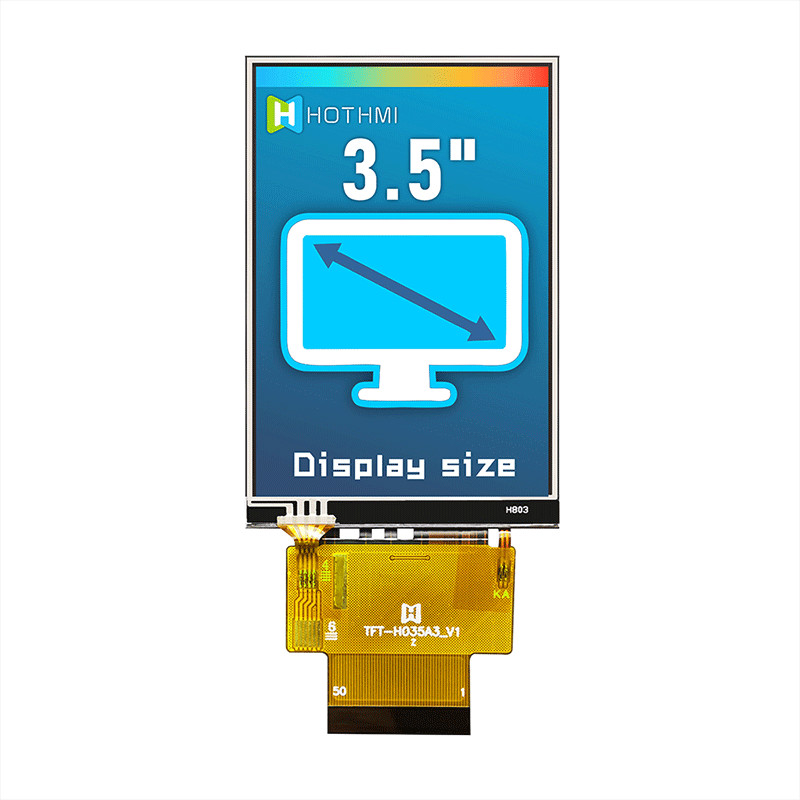

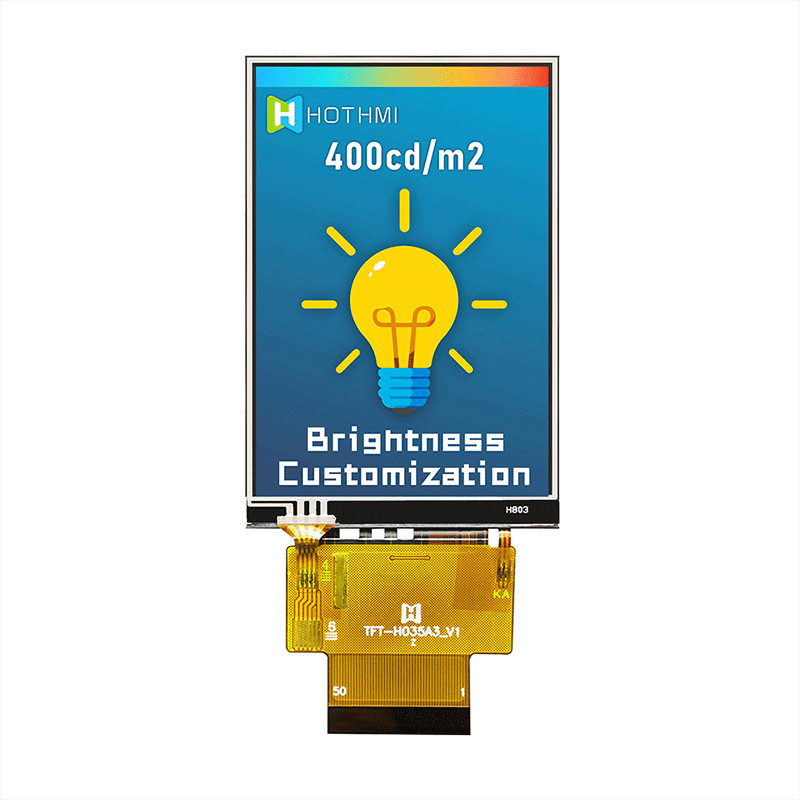

The TFT-H035A3HVIST4R50 is a 3.5-inch wide temperature IPS TFT-LCD monitor with a projected resistive touch screen with a resolution of 320X480 pixels. The module has built-in ST7796S driver IC, which supports MIPI fully compatible interface. TFT-H035A3HVIST4R50 adopts IPS panel, which has the advantage of wider viewing angle, left: 80/right: 80/up: 80/down: 80 degrees (typical value), contrast ratio 800:1 (typical value), brightness 400 nits (typical value) value), glare panel, 1:1.5 aspect ratio. Support I2C interface and single touch function. The H035A3H model has a projected resistive touch panel (CTP), and the TFT-H035A3HVIST4R50's supply voltage (VCC) is 2.5V to 3.0V, typically 2.8V. It can operate at temperatures from -20°C to +70°C and storage temperatures from -30°C to +80°C.

Vertical 3.5 Inch TFT LCD Module , Multifunctional TFT Capacitive ScreenVertical 3.5 Inch TFT LCD Module , Multifunctional TFT Capacitive ScreenVertical 3.5 Inch TFT LCD Module , Multifunctional TFT Capacitive ScreenVertical 3.5 Inch TFT LCD Module , Multifunctional TFT Capacitive ScreenVertical 3.5 Inch TFT LCD Module , Multifunctional TFT Capacitive ScreenVertical 3.5 Inch TFT LCD Module , Multifunctional TFT Capacitive ScreenVertical 3.5 Inch TFT LCD Module , Multifunctional TFT Capacitive ScreenVertical 3.5 Inch TFT LCD Module , Multifunctional TFT Capacitive ScreenVertical 3.5 Inch TFT LCD Module , Multifunctional TFT Capacitive ScreenVertical 3.5 Inch TFT LCD Module , Multifunctional TFT Capacitive Screen

Vertical 3.5 Inch TFT LCD Module , Multifunctional TFT Capacitive Screen

TFT-H035A3HVIST4R50_4.pdf
