128X64 Gray LCD Graphic Display Module With White Side Backlight HTG12864-93

Name: 128X64 Gray LCD Graphic Display Module With White Side Backlight HTG1286493
Brand: HOTHMI
Price: 1 USD

128X64 Gray LCD Graphic Display Module With White Side Backlight HTG12864-93 Manufactures

Brand Name : HOTHMI

Model Number : HTG12864-93

Place of Origin : Dongguan, China

MOQ : 2

Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram

Supply Ability : 99999

Delivery Time : 25 days

Product type : COG

Show contents : 128x64

Outline size(mm) : 57.5x41.7x4.3

Size of View Window(mm) : 54.0x31.0

Display size(mm) : 47.33x26.21

Point spacing(mm) : 0.79x0.71

Visual angle : 6H o'clock

Connection PIN Number : FFC-28PIN

Interface mode : MCU/8bit

Working temperature : -20~70℃

Power supply voltage : 3.3v

Driver chip model : ST7567

Product Application : Flow Meter

Contact Now

128X64 Graphic COG LCD | STN Gray Display With White Side Backlight/HTG12864-93

HTG12864-93 | Monochrome Graphic COG | 128x64 Pixels | Transflective LCD | Side White Backlight | STN (+) Positive Gray Display | In-stock

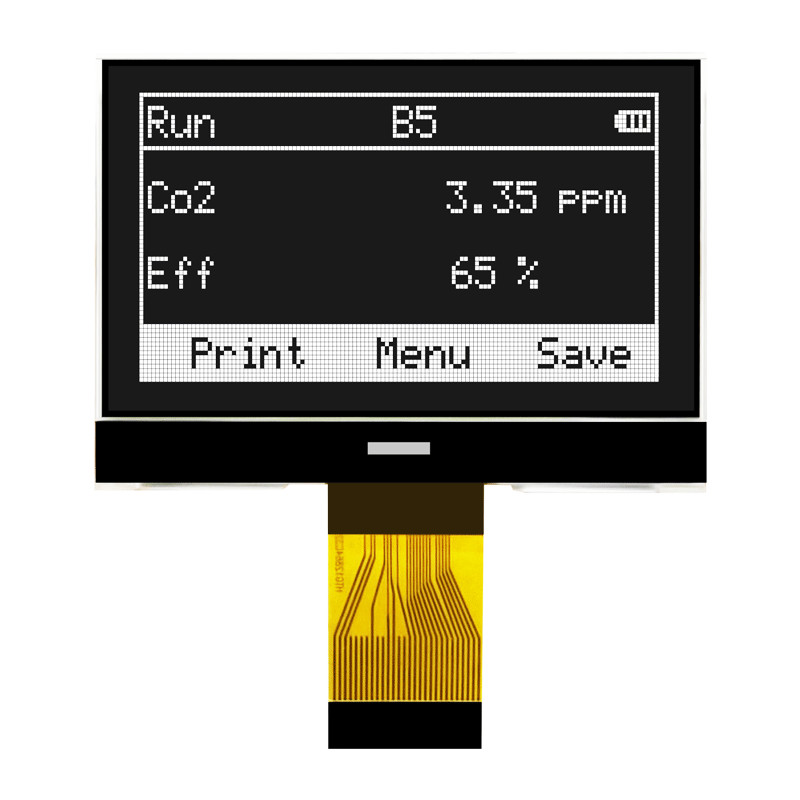

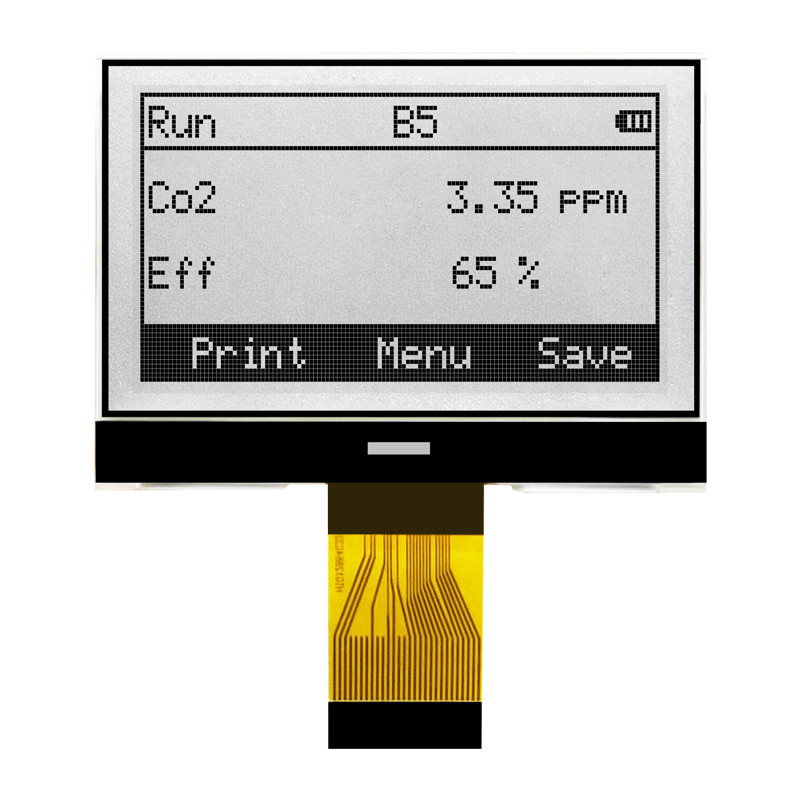

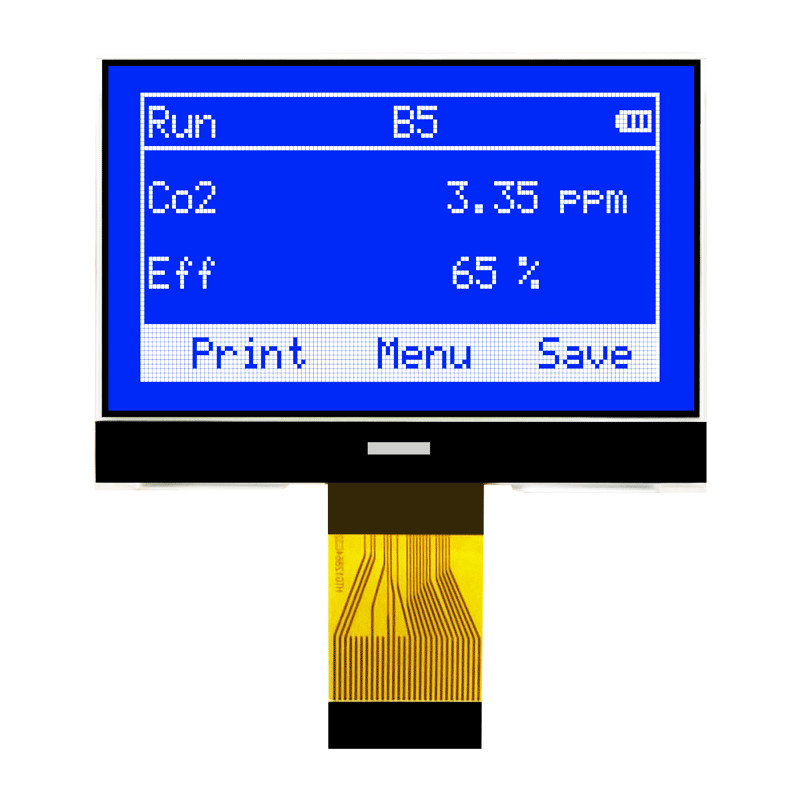

HOTLCD 128x64 graphic Chip-On-Glass (COG) Liquid Crystal Display shows blue pixels on a gray background. This transflective LCD Display is visible with ambient light or a backlight while offering a wide operating temperature range from -20 to 70 degrees Celsius. This HTG12864-93 display has an optimal view of 6:00, operates at 3.3V supply voltage and is RoHS compliant.

Product parameters

ITEM	STANDARD VALUE	UNIT
Number of dots	128x64 DOTS	----
Module dimension	57.5x41.7x4.3	mm
View display area	54.0x31.0	mm
Dot size	0.38x0.34	mm
Dot pitch	0.41x0.37	mm
Operating temp	-20~70	℃
Storage temp	-30~80	℃
Driving Method	1/ 128 DUTY,1/ 12 BIAS,VOP= 3.3V
Viewing direction	6 O’CLOCK
Display mode	STN/YG
Display type	TRANSMISSIVE / NEGATIVE
Driver IC	ST7567
Backlight	WHITE

Electrical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage For Logic	VDD-VSS	－	2.7	3.0	3.3	V
Supply Voltage For LCM	VOP	Ta=-20℃ Ta=25℃ Ta=70℃	－ 9.15 －	－ 9.45 －	－ 9.75 －	V V V
Input High Volt.	VIH	－	0.7 VDD	－	VDD	V
Input Low Volt.	VIL	－	Vss	－	0.3VDD	V
Output High Volt.	VOH	－	0.8 VDD	－	VDD	V
Output Low Volt.	VOL	－	Vss	－	0.2 VDD	V
Supply Current	IDD	VDD=3.0V	－	0.45	0.9	mA
