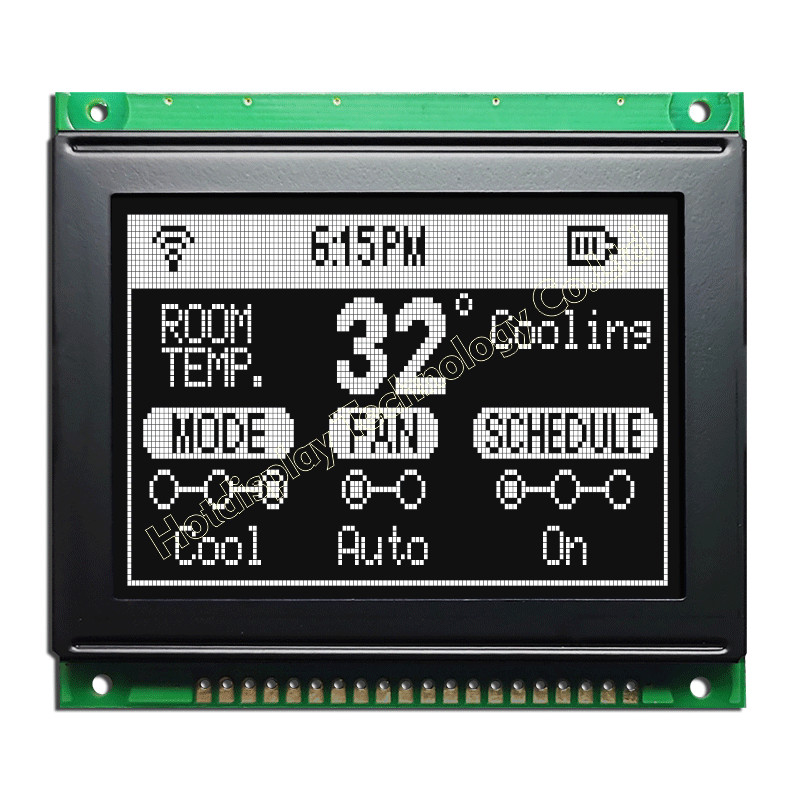

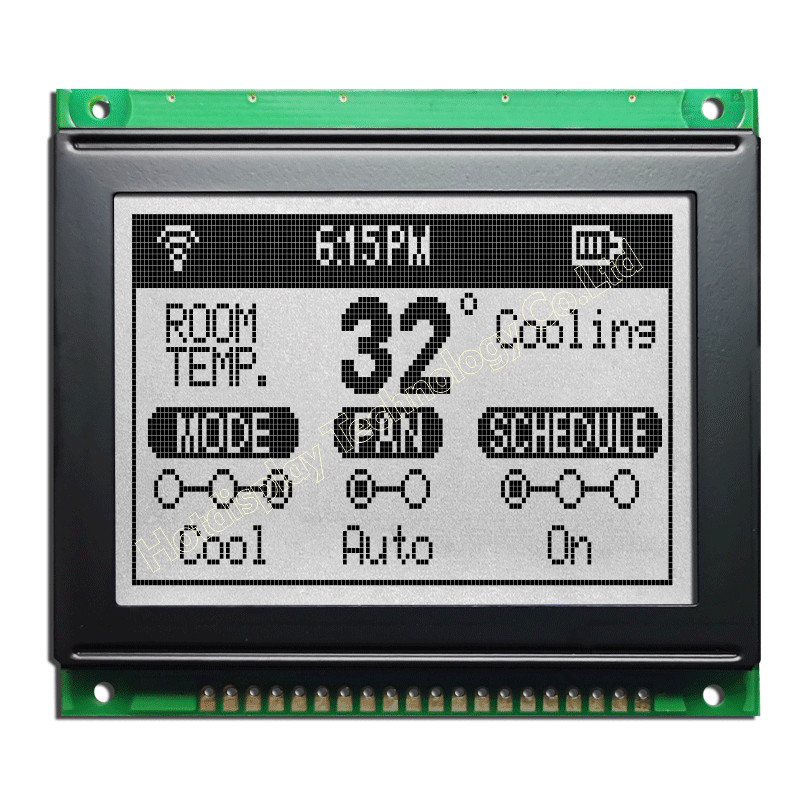

KS0108 Graphical LCD Display 128x64 , White Backlight LCD Graphic Module HTM12864D

Name: KS0108 Graphical LCD Display 128x64 White Backlight LCD Graphic Module HTM12864D
Brand: HOTHMI
Price: 1 USD

KS0108 Graphical LCD Display 128x64 , White Backlight LCD Graphic Module HTM12864D Manufactures

Brand Name : HOTHMI

Model Number : HTM12864D

Place of Origin : dongguan,China

MOQ : 2

Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram

Supply Ability : 99999

Delivery Time : 25 days

Product Type : Standard COB LCD Module

Display content : 128x64

Product Application : Instrumentation

Viewing Angle : 6H

Number of PINS : 20PIN

Special Instructions : SPI

Driver chip model : KS0108

Contact Now

128X64 Graphic LCD Module | KS0108 | Display With White Backlight | HTM12864D

DESCRIPTION

HTM12864D is a128x64 LCD display module which is having the same mechanical size as HTM12864D.HTM12864D model is built in with KS0108; it communicates via 8080 8-bit parallel interface and negative voltage built in on module. HTM12864D is available in various LED colors including yellow/green, blue, white, red, etc. This 128 x 64 LCD module can be operating at temperatures from 0℃ to +50℃; its storage temperatures range from 0℃ to +60℃.

Product parameters

Product Application - Instrumentation
Viewing Angle - 6H
Backlight Brightness - White
Connection method PIN number - 20PIN
Interface mode - 8080/8bit
Working temperature - 0~50℃
Supply voltage - 5.0v
Driver chip model - KS0108

Mechanical Data

Item	Standard Value	Unit
Module Dimension	78.0x70.0x12.5	mm
Viewing Area	62.0x44.0	mm
Mounting Hole	56.28x38.36	mm
Dot Pitch	0.60x0.44	mm
Dot Size	0.56x0.4	mm

Electrical Characteristics

Item	Symbol	Standard Value typ.	Unit
Input Voltage	VDD	5.0	V

Interface Pin Function

Pin No.	Pin Name	Function
1	/CS1	Chip selection input 1
2	/CS2	Chip selection input 2
3	VSS	LCD Negtive(VSS)
4	VDD	LCD Positive(5.0V)
5	V0	LCD Adjust
6	RS	H:Data; L: Instruction
7~14	R/W	H:Read ; L: Write.
15	E	Enable signal.
16	D0~D7	Data Buss
17	REST	Reset Signal input
18	VEE	About( -12)V
19	BLA	Bcaklight Positive(5.0V)
20	BLK	Bcaklight Negtive(VSS)
