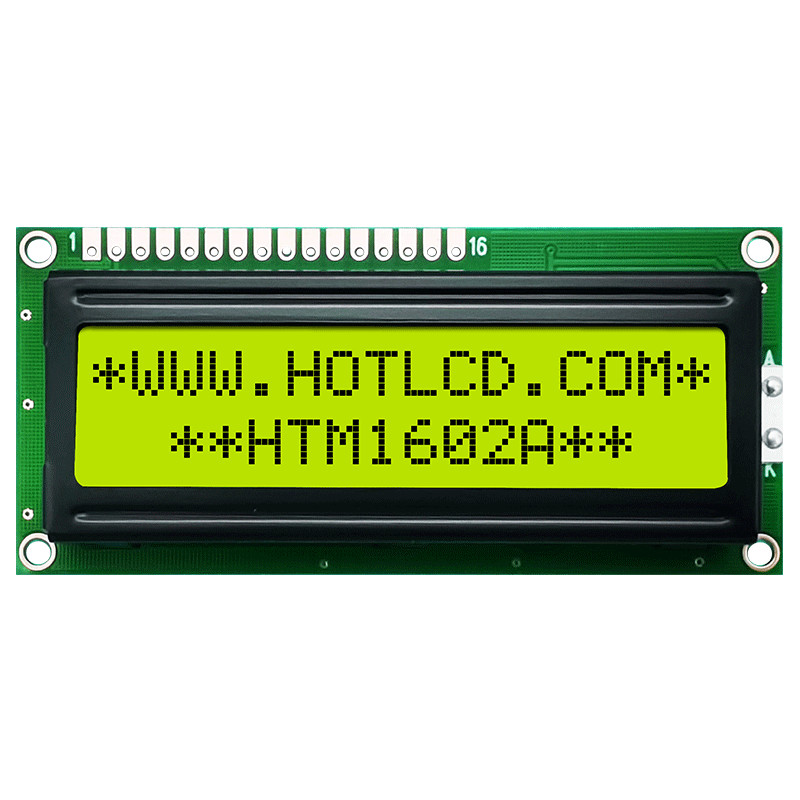

16x2 16PIN Character LCD Module Medium STN Yellow Green HTM1602A

  • 1
  • 2
  • 3

Brand Name : HOTHMI

Model Number : HTM1602A

Place of Origin : Dongguan, China

MOQ : 2

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 99999

Delivery Time : 25 days

Show contents : 16x2 Character

Outline size(mm) : 80.0x36.0x13.1

Size of View Window(mm) : 64.5x15.8

Display size(mm) : 55.8x10.64

Point spacing(mm) : 0.62x0.64

Contact Now

16x2 Character Medium Lcd/STN + Yellow/Green/HTM1602A

Quick detail

Product Type - Standard COB Character LCM
Display Content - Character 16x2
Dimensions (mm) - 80.0x36.0x13.1
Viewport window size (mm) - 64.5x15.8
Display size (mm) - 55.8x10.64
Dot Spacing mm - 0.62x0.64
Product Application - Industrial Control
Viewing Angle - 6H
Backlight Type or Brightness - Yellow Green
Connection method PIN number - 16PIN
Interface - MCU/8bit
Operating temperature - (-20~70℃)
Supply Voltage - 5.0v

Terminal Function

Pin No Pin Name Function
1 VSS- Power Supply- (0V)
2 VDD+ (5.0V)Positive Power Supply
3 V0- LCD Contrast Reference Supply

4

RS

Select Register

0:Instruction register ,(for write) busy flag address Counter(for read)

1:Data register (for write and read)

5

R/W-

Select read or write 0: Write/

1: Read
6 E Starts data read/write
7 DB 0-

Data Bus Lines
8 DB 1-
9 DB 2-
10 DB 3-
11 DB 4-
12 DB 5-
13 DB 6-
14 DB 7-
15 BLA+ Backlight Positive-(5.0V)
16 BLK- (VSS) Backlight Negative


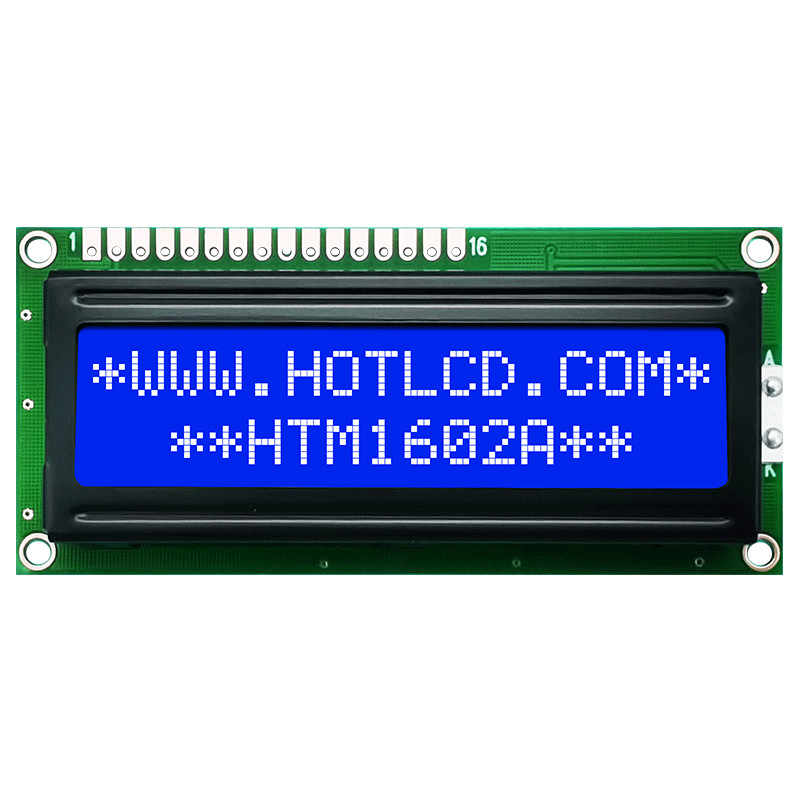

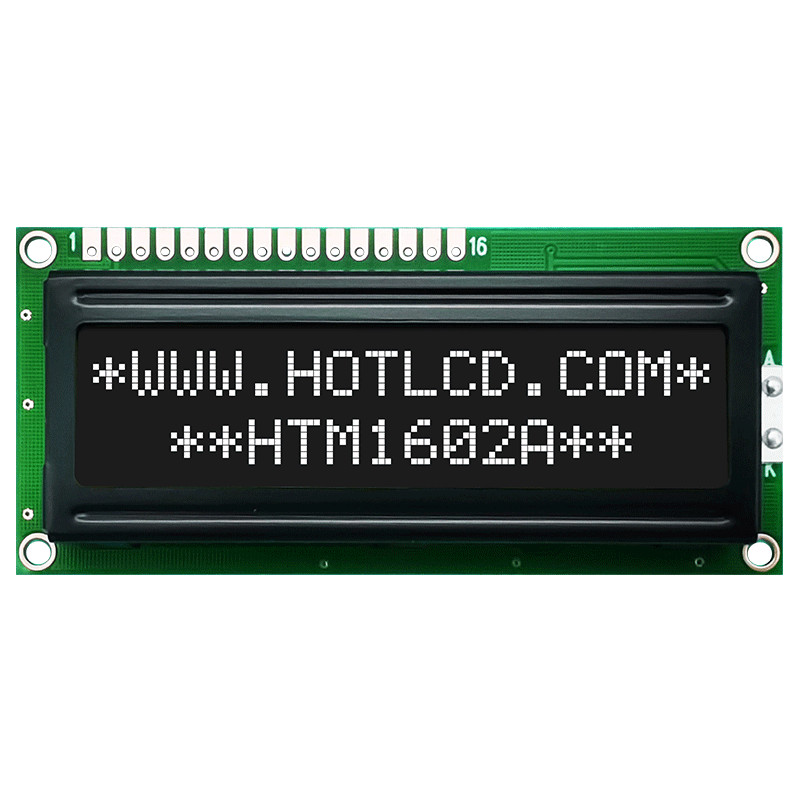

16x2 16PIN Character LCD Module Medium STN Yellow Green HTM1602A16x2 16PIN Character LCD Module Medium STN Yellow Green HTM1602A16x2 16PIN Character LCD Module Medium STN Yellow Green HTM1602A

16x2 16PIN Character LCD Module Medium STN Yellow Green HTM1602A

HTM1602A.pdf
